Bank Stabilization

Bank stabilization encompasses a range of bioengineering techniques designed to prevent or repair erosion along stream and river banks. These methods primarily use living plant materials, natural fibers, and strategic grading to create a resilient, vegetated surface that can withstand erosive forces. Unlike structural or “hard” armoring approaches that rely on rock or concrete, bioengineering aims to establish a self-sustaining, living system that provides ecological benefits in addition to stability. The core principle is to use vegetation to anchor soil, slow water velocity at the bank surface, and create a root mat that reinforces the bank structure from within.

These practices are applied where banks show signs of active erosion, such as scouring, slumping, or the presence of bare, vertical faces. By re-establishing riparian vegetation, bank stabilization not only protects property and infrastructure but also restores critical stream habitat. Healthy, vegetated banks provide shade to cool water temperatures, filter pollutants from surface runoff, and offer cover and food for aquatic and terrestrial wildlife. The choice of technique depends on the severity of erosion, the energy of the stream, and specific site conditions.

Bank Stabilization Techniques

Successful bank stabilization often involves a combination of techniques, starting with reshaping the bank to a stable angle and then layering vegetative and structural components to protect the surface and toe from erosion.

Bank Grading and Reshaping

Before installing vegetative treatments, an eroding bank must often be regraded to a more stable slope. Steep, vertical banks are inherently unstable. Reshaping the bank to a gentler slope, typically no steeper than 2:1 (horizontal:vertical), is the foundational first step. This process reduces the gravitational forces contributing to bank failure and creates a suitable surface for establishing vegetation. Excess soil is removed from the top of the bank and, where appropriate, used to help build out the toe.

Live Stakes

Live staking is a simple method of installing dormant cuttings of woody plant species that root easily, such as willows, dogwoods, and alders. Stakes are harvested during the plant’s dormant season and inserted directly into the moist soil of the bank. Once planted, the stakes sprout roots and shoots, developing into a dense root mat that binds the soil particles together. They are often installed in combination with other techniques to quickly establish woody vegetation.

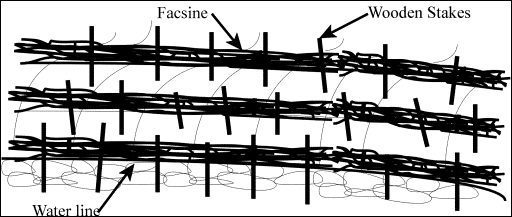

Live Fascines (Wattles)

Live fascines are sausage-like bundles of dormant branch cuttings bound together with twine. A typical fascine is eight to ten feet long and eight to ten inches in diameter. They are placed in shallow trenches dug on the contour of the bank, parallel to the stream flow. Once staked securely in place, the fascines trap sediment, slow runoff flowing down the bank face, and sprout roots and shoots along their length. They are effective for breaking up long slopes and can provide immediate protection at the toe of the bank in low-scour environments.

Brush Layering and Brush Mattresses

Brush layering and brush mattresses are techniques used to cover and protect larger areas of a regraded bank.

In brush layering, alternating layers of live branch cuttings and compacted soil are installed on the bank, creating a reinforced slope. The branches extend from the bank face back into the soil, providing immediate structural integrity while they establish roots.

A brush mattress is a thick mat of dormant cuttings placed over a graded streambank, typically on slopes of 2:1 or less. Installation begins by digging a shallow trench behind the toe protection. The butt ends of the branches are placed in this trench to ensure good contact with moist soil. The branches are then laid across the bank, perpendicular to the stream, until the soil is barely visible. The entire mattress is secured with stakes and twine, and soil is worked into the mat to maximize contact and encourage rooting. This creates a living, structural blanket that protects the bank surface while it vegetates.

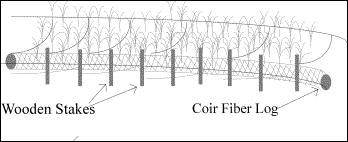

Coir Fiber Logs

Coir fiber logs are commercially manufactured rolls made of tightly packed coconut fiber held in a coir-twine netting. They are typically available in 10- to 20-foot lengths with a diameter of 10 to 12 inches. These logs are excellent for providing protection at the toe of the bank where scour is not severe. They are installed by excavating a shallow trench, placing the log firmly against the bank and streambed, and securing it with wooden stakes. Vegetation can be planted directly into the log. Coir logs provide immediate structural support and decompose over a three- to six-year period, by which time established plant roots have taken over the role of stabilization.

Erosion Control Fabrics and Soil Lifts

Erosion control fabrics, or mats, are geotextiles made from natural fibers like coir or wood fiber, or from synthetic materials. They are rolled out and stapled onto a graded and seeded bank to provide immediate surface protection from rain splash and runoff, holding soil and seed in place until vegetation can establish. Biodegradable options, such as coir matting, are preferred in natural stream settings as they eventually break down, leaving no synthetic residue.

These fabrics can also be used to create vegetated soil lifts, also known as vegetated geogrids. This technique involves wrapping soil in layers of fabric to build up the bank in a series of terraces. Live cuttings are placed between the layers, creating a structurally sound, vegetated bank face.

Applicability

Bioengineering practices are most successful in watersheds with low to moderate levels of impervious cover, where storm flows are less extreme. In highly urbanized catchments, the elevated storm flows, high stream velocities, and rapid water level fluctuations can overwhelm these living systems. Improving upstream stormwater management to reduce peak flows, for instance by using detention practices sized with a stormwater pond design calculator, can increase the chances of success for bank stabilization projects in developed areas.

Site-specific conditions are also critical. These techniques are best suited for streams with low to moderate shear stress. Bank height and slope are key factors; for example, brush mattresses are most effective on slopes of 2:1 or gentler. Most techniques also require sufficient sunlight to support vigorous plant growth. The online BMP selector tool can help practitioners compare and select appropriate stormwater practices for a given location.

Design Considerations

A successful bank stabilization design begins with a thorough assessment to understand the root causes of erosion. Instability is often a symptom of systemic issues in the stream channel or the larger watershed. A project that only addresses the bank may fail if the underlying problem, such as channel incision, is not also corrected. Therefore, bank stabilization is frequently combined with other stream restoration practices, such as grade control structures to stabilize the streambed or flow deflection measures to manage in-stream hydraulics.

Vegetation selection is a critical design element. The ideal species are native, fast-growing, and have dense, fibrous root systems. Dormant cuttings from willows, dogwoods, and alders are commonly used because they root readily when planted in moist conditions. Protecting the toe of the bank is the most important design consideration, as most bank failures begin with erosion at the base. The chosen toe treatment must be robust enough to withstand the hydraulic forces concentrated at that location.

Construction and Cost Considerations

Timing is a crucial factor for any project involving live, dormant cuttings. Installation must occur during the non-growing season, typically from late fall after leaves have dropped until early spring before buds break. This ensures the plant’s energy is directed toward root production rather than leaf growth.

Materials include harvested plant cuttings and manufactured products like coir logs and erosion control matting. Whenever possible, plant materials should be sourced locally to ensure they are adapted to regional conditions. While these techniques often require less heavy machinery than hard armoring, they can be labor-intensive. Costs are influenced by site accessibility, the scale of the project, and the specific mix of techniques employed. Volunteer labor can sometimes be used for tasks like installing live stakes or fascines, which can help manage project costs.

Maintenance

Post-construction maintenance is essential for the long-term success of bioengineering projects, especially during the first two to three years as vegetation becomes established. A typical maintenance plan includes several key activities.

Limitations

While effective in many situations, bioengineering approaches have clear limitations. Their primary constraint is their performance in high-energy stream environments. In channels with very high velocities, strong turbulence, and high shear stress, the forces exerted on the bank may be too great for vegetation alone to withstand. These situations may call for engineered solutions detailed in the Streambank Protection fact sheet, which covers more robust, armored approaches.

Other limitations include site conditions that are inhospitable to plant growth, such as deep shade that prevents photosynthesis, poor or contaminated soils, or intense grazing pressure from wildlife like deer or beaver. The effectiveness of these practices is also highly dependent on proper installation and timely maintenance, especially control of invasive species.
